85mm Water Temperature Meter Oil Pressure Fuel Level Voltage 4In1 Multifunctional Gauge Oil Press Sensor for Car Boat 8~16V(Sky Blue)

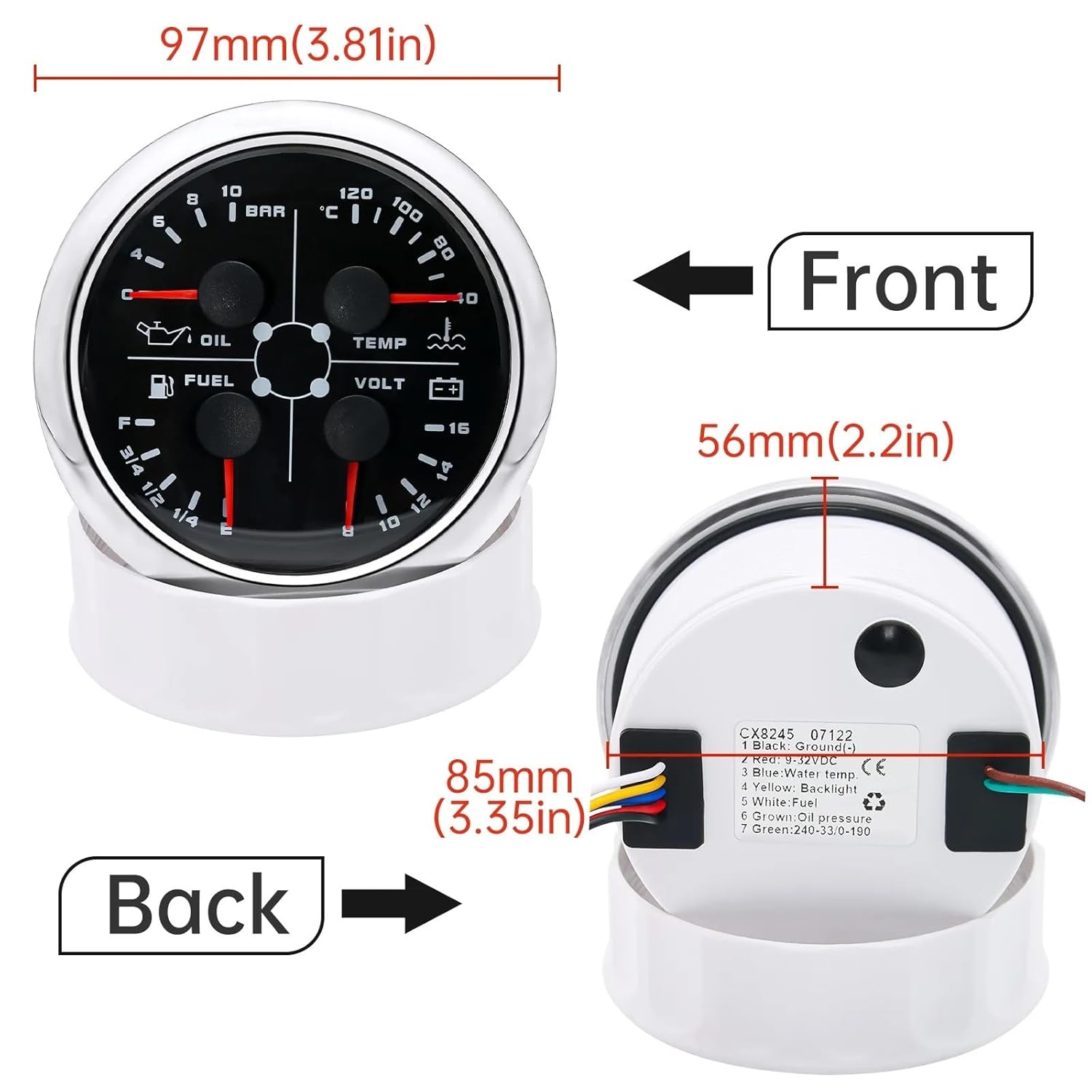

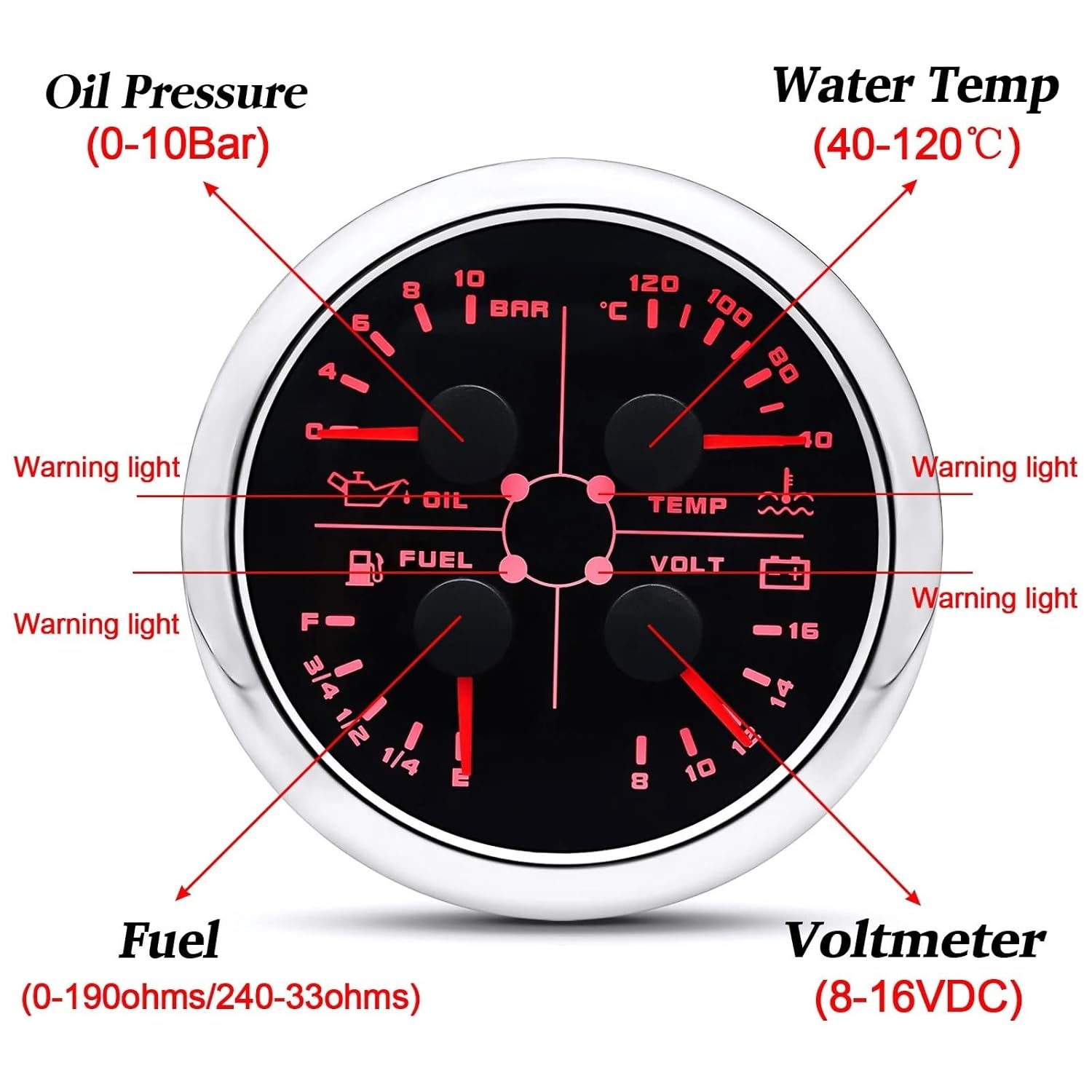

Oil Pressure Gauges85mm Water Temperature Meter Oil Pressure Fuel Level Voltage 4In1 Multifunctional Gauge Oil Press Sensor For Car Boat 8~16VFeatures:* The world's newest 4 in 1 multifunction gauge.* Convenient Installation by multi-plug socket connecting way.* The gauge has the advantages of high precision, quick location confirmation and short start up time.* Most importantly, the gauge is easy to setup, and can be used in all vehicles, boats and off-road vehicles.:* Fixing dimension: 85mm* Indicating Range: Oil press. meter: 0-150psi;/0-10Bar* Water temp. meter: 100-250° F/ 40-120* Fuel level meter: 0-190ohms/240-33ohms, empty-full; (The signal can be change)* Voltmeter: 8-16V* Working Voltage: 12V* Backlight: RedInput Signal:* 10-184ohms for 0-150PSI oil pressure meter;* 0-190ohms for fuel level meter;(Default 0-190ohms, can change to 240-33ohms)* 8-16V voltage meter;* Input Signal 287.4-22.4ohms for water temperature meter* Red backlight* Protection grade is IP67, the whole body is completely waterproof;* Excellent antifogging function;* 316 Stainless steel bezel with curved glass;* Convenient Installation by multi-plug socket connecting way;* Accessories: matched with connectors, Installation InstructionPackage Included(as picture):1 x 85mm 4 in 1 Multifunctional Gauge1 x Installation Instruction1 x Cable4 in 1 GaugeOil Press(0-10Bar)Water temp(40-120)4 in 1 GuageOil Press(0-150PSI)Water Temp(GPS Speedometer and tachometer85mm gauge holderPackage:1X 85mm gauge holder==========High-concerned chemical : NoneOther Part Number : Oil Pressure gaugePlacement on Vehicle : FrontInterchange Part Number : fuel level gaugeSpecial Features : 4 In1 Multifunctional GaugeItem Weight : 0.35kgItem Height : 85mmItem Width : 85mmItem Length : 85mm Part Number : Water Temperature Gauge NO. : water temperature gauge meterMaterial : stainless steel and plasticName : 85mm 4 In 1 Multifunctional GaugeColor : white silver/white/white gold/black gold/black silver/blackWorking Voltage : 12-24V(9-32V)Oil Pressure Meter : fuel level meterVoltage gauge : volt meterOil Pressure range : 0-150PSI / 0~10BarWater temp range : 100-250 / 40-120Working temp : -30~+70Volt singal : 8-16Vfuel level signal : 0-190ohm/240-33 ohmfuel level gauge rang : E-1/2-Ffuel level sensor : Water Temperature GaugeBoat GPS Speedometer Gauge : boat tacho meter gaugeSpeedometer Motorcycle : Digital Car SpeedometerCar Boat Gauges : 85mm Boat Speedometerspeed meters : gps speedometer carMotorcycle meter : GAUGwater temperature gauge : Pressure GaugesDIGIT PRESSUR GAUG : oil pressure gaugecar temperature sensor : WATER PRESSUR GAUGoil pressure : Oil pressure sensorPressure Sensors : temperature sensorwater temperature sensor : digital voltmetercar temperature meter : car meter
