8 Color Backlight 52mm 4 in 1 Multifunction Gauge Digital Gauge 0-190ohm Fuel Level Gauge+Water Temp+Oil Pressure+Voltmeter Car(Black)
Product details
| Management number | 212772548 | Release Date | 2026/04/06 | List Price | $52.30 | Model Number | 212772548 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

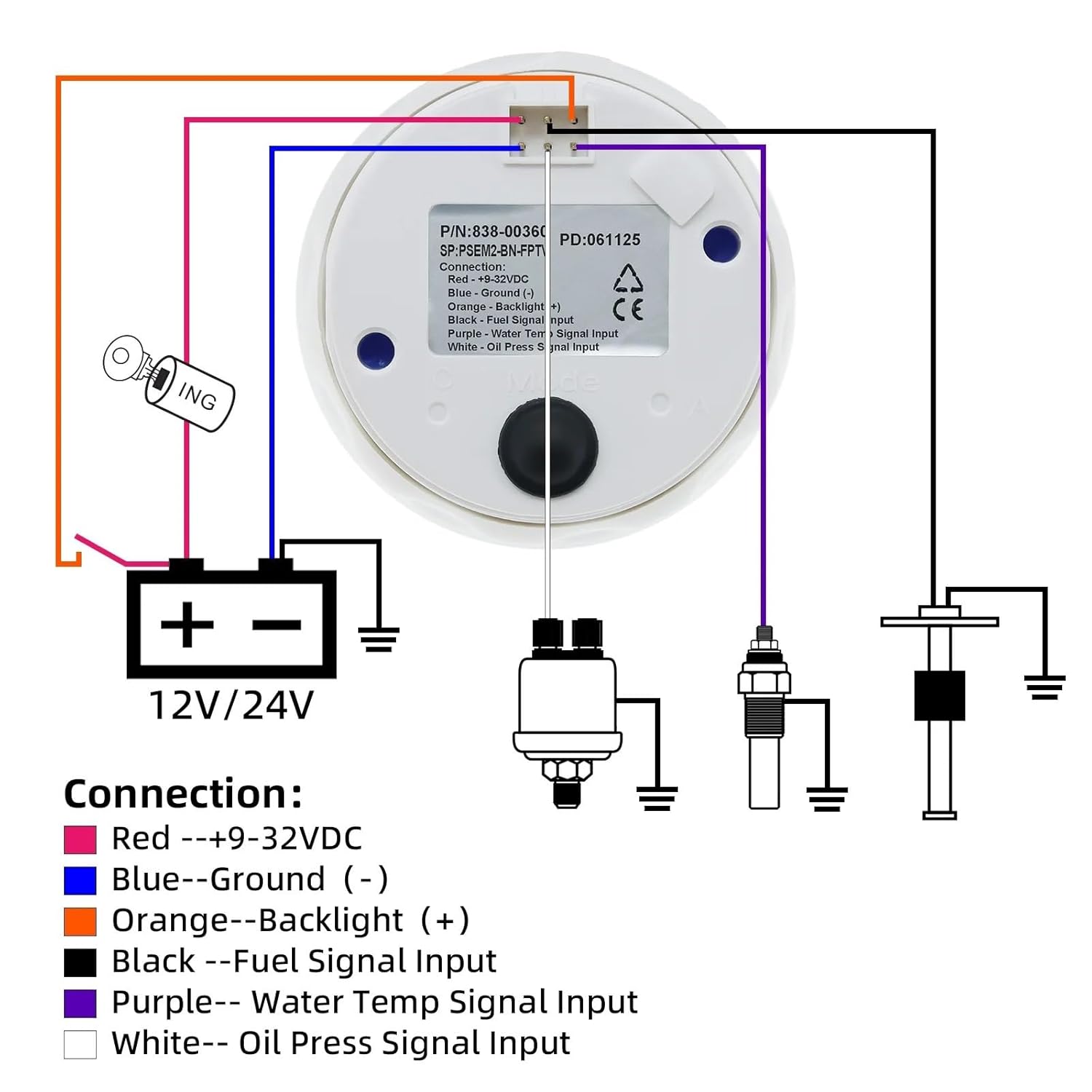

Oil Pressure Gauges8 Color Backlight 52mm 4 in 1 Multifunction Gauge Digital Gauge 0-190ohm Fuel Level Gauge+Water Temp+Oil Pressure+Voltmeter CarOperation:<; 1 second) to change the backlight color: red (default) green blue white yellow yellow green orange purple.2. Long press the MODE button( >4 seconds) to enter the setting mode:a) Short press the button(<; 1 second) to select the setting indicator. After your selection is confirmed(The corresponding digits will be flickering ). Long press the button ( >2 seconds ) to scroll through the parameter group. Like F01 to F05 for fuel level gauge, P01 to P03 for pressure gauge.b) After scrolling to the parameter required, release the button(>4seconds) , the setting was successful and data will be saved.Feature:- Fuel Level Gauge: 0-190ohm,0-180ohm,240-33ohm,10-180ohm,240-30ohm- Oil Pressure Gauge: 0-10bar,0-5bar,0-25bar- Water Temp Gauge: 40~120- Voltmeter: 9-32VSpecification:Operating Voltage:9~32VDC,Operating current:60mA;Operating temperature:-30~+75Storage temperature:-40~+85.Connection:1,Red --+9-32VDC2,Black --Fuel Signal Input3,Orange--Backlight(+)4,Blue--Ground(-)5,Purple-- Water Temp Signal Input6,White-- Oil Press Signal InputPackage Included(as picture):1 x 52mm 4 in 1 Multifunctional Gauge1 x Installation Instruction1 x Cable4 in 1 Gauge==========High-concerned chemical : NoneOther Part Number : Oil Pressure gaugePlacement on Vehicle : Front Part Number : Water Temperature GaugeInterchange Part Number : fuel level gaugeSpecial Features : 4 In1 Multifunctional GaugeItem Weight : 0.14kgItem Height : 52mmItem Width : 52mmItem Length : 52mmMaterial : stainless steel and plastic NO. : water temperature gauge meterName : 52mm 4 In 1 Multifunctional GaugeColor : white silver/white/white gold/black gold/black silver/blackWorking Voltage : 12-24VOil Pressure Meter : fuel level meterVoltage gauge : volt meterOil Pressure range : 0-10bar,0-5bar,0-25barWater temp range : 40-120Working temp : -30~+70Volt singal : 9-32Vfuel level signal : 0-190ohm,0-180ohm,240-33ohm,10-180ohm,240-30ohmfuel level gauge range : E-1/2-Ffuel level sensor : Water Temperature MeterCar Boat Gauges : 52mm Boat fuel gauge4 in 1 Multifunction Gauge : Water Temperature gauge
- Oil Pressure Gauges
- 8 Color Backlight 52mm 4 in 1 Multifunction Gauge Digital Gauge 0-190ohm Fuel Level Gauge+Water Temp+Oil Pressure+Voltmeter Car
| Brand Name | EDRIWYIM |
|---|---|
| Manufacturer | EDRIWYIM |
